Implementing a GTFS routing server

alainlhostis · May 15, 2025, 2:48pm

My intention is to setup a GTFS routing service for my region.
I was inspired by the instructions on github for setting up a reader-gtfs.

I downloaded a GTFS file, and an OSM extract.
I downloaded the last graphhopper webservice jar here.
put everything in a folder
adapted a config-pt.yml see below
run java -Xmx8g -jar graphhopper-web-10.0.jar server config-pt.yml
needed to remove foot_road_access in the encoded_values of the config file because it generated an error

I also copy here the config-pt.yml that I adapted from the example on github:

graphhopper:
  datareader.file: nord-pas-de-calais-latest.osm.pbf
  # for multiple files you can use: gtfs.file: file1.zip,file2.zip,file3.zip
  gtfs.file: export-ter-gtfs-last.zip
  graph.location: graphs/npdc-with-transit

  profiles:
    - name: foot
      custom_model_files:
        - foot.json
      # optionally add
      #  - foot_elevation.json

  import.osm.ignored_highways: motorway,trunk
  graph.encoded_values: foot_access, foot_average_speed, foot_priority, hike_rating, mtb_rating, country, road_class

server:
  application_connectors:
    - type: http
      port: 8989
      bind_host: localhost
  admin_connectors:
    - type: http
      port: 8990
      bind_host: localhost

My issue: only foot is available. How can I activate the transit? This discussion didn’t help me.

karussell · May 15, 2025, 2:50pm

What error did you get when you specify profile=pt in the request?

Also did you try the UI located at localhost:8989/maps/pt? As the tiles API key is outdated in older versions make sure you use the latest master.

alainlhostis · May 15, 2025, 3:21pm

That was a fast answer !
OK now it is more clear to me.
I tried:

localhost:8989/maps/pt this leave an empty, white page
localhost:8989 opens the client, and then I see profile=foot in the url http://localhost:8989/maps/?profile=foot&layer=OpenStreetMap so
I tried http://localhost:8989/maps/?profile=pt&layer=OpenStreetMap but then read this message in the route box The requested profile 'pt' does not exist. Available profiles: [foot] and no visible way to shift to pt through the interface (only a pedestrian icon is visible)

ps could you explain more this “As the tiles API key is outdated in older versions make sure you use the latest master.” But I made sure I used the most recent graphhopper-web as in the link of the main github page: https://repo1.maven.org/maven2/com/graphhopper/graphhopper-web/10.0/graphhopper-web-10.0.jar

karussell · May 15, 2025, 5:19pm

Unfortunately at the moment you will need to recompile the latest version from the master branch to see the public transit UI (the /route endpoint and the /maps UI still work). See the fix in Maps for public transport does not display · Issue #3087 · graphhopper/graphhopper · GitHub. Note that the web API (/route) is different to the public transit UI (/maps/pt/).

To build graphhopper from master branch just clone the repository and run mvn:

git clone https://github.com/graphhopper/graphhopper
cd graphhopper
mvn clean install -DskipTests

then use web/target/graphhopper-web-11.0-SNAPSHOT.jar to start it. Then you should see something like:

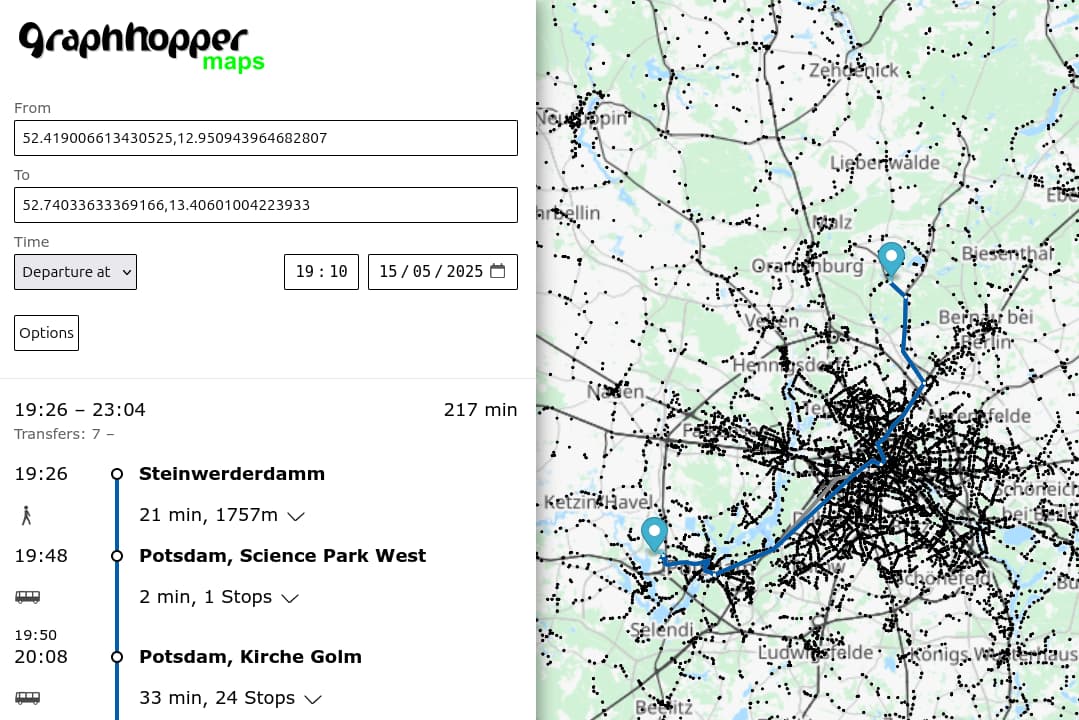

An example web API request where you can specify profile=pt is:

http://localhost:8989/route?point=52.419006613430525%2C12.950943964682807&point=52.74033633369166%2C13.40601004223933&pt.earliest_departure_time=2025-05-15T17%3A10%3A33Z&pt.arrive_by=false&locale=en-US&profile=pt&pt.profile=false&pt.access_profile=foot&pt.beta_access_time=1&pt.egress_profile=foot&pt.beta_egress_time=1&pt.profile_duration=PT120M&pt.limit_street_time=PT30M&pt.ignore_transfers=false

I just copied this from the browser network console but you only need the following parameters: point (2x), profile, pt.earliest_departure_time and pt.limit_street_time.

alainlhostis · May 15, 2025, 8:37pm

I have an error in the compile:

mvn clean install -DskipTests
[INFO] Scanning for projects...
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Build Order:
[INFO]
[INFO] GraphHopper Parent Project                                         [pom]
[INFO] GraphHopper Web API                                                [jar]
[INFO] GraphHopper Core                                                   [jar]
[INFO] GraphHopper Reader for Gtfs Data                                   [jar]
[INFO] GraphHopper Tools                                                  [jar]
[INFO] GraphHopper Map Matching                                           [jar]
[INFO] GraphHopper Directions API hand-crafted Java Client.               [jar]
[INFO] GraphHopper Dropwizard Bundle                                      [jar]
[INFO] GraphHopper Navigation                                             [jar]
[INFO] GraphHopper Web                                                    [jar]
[INFO] GraphHopper Example                                                [jar]
[INFO]
[INFO] -----------------< com.graphhopper:graphhopper-parent >-----------------
[INFO] Building GraphHopper Parent Project 11.0-SNAPSHOT                 [1/11]
[INFO]   from pom.xml
[INFO] --------------------------------[ pom ]---------------------------------
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugins/maven-install-plugin/3.1.2/maven-install-plugin-3.1.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugins/maven-install-plugin/3.1.2/maven-install-plugin-3.1.2.pom (8.5 kB at 19 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugins/maven-plugins/42/maven-plugins-42.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugins/maven-plugins/42/maven-plugins-42.pom (7.7 kB at 99 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/42/maven-parent-42.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/42/maven-parent-42.pom (50 kB at 459 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/apache/32/apache-32.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/apache/32/apache-32.pom (24 kB at 331 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugins/maven-install-plugin/3.1.2/maven-install-plugin-3.1.2.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugins/maven-install-plugin/3.1.2/maven-install-plugin-3.1.2.jar (32 kB at 415 kB/s)
[INFO]
[INFO] --- clean:3.2.0:clean (default-clean) @ graphhopper-parent ---
[INFO]
[INFO] --- failsafe:2.22.2:integration-test (default) @ graphhopper-parent ---
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/maven-surefire-common/2.22.2/maven-surefire-common-2.22.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/maven-surefire-common/2.22.2/maven-surefire-common-2.22.2.pom (11 kB at 143 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugin-tools/maven-plugin-annotations/3.5.2/maven-plugin-annotations-3.5.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugin-tools/maven-plugin-annotations/3.5.2/maven-plugin-annotations-3.5.2.pom (1.6 kB at 23 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugin-tools/maven-plugin-tools/3.5.2/maven-plugin-tools-3.5.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugin-tools/maven-plugin-tools/3.5.2/maven-plugin-tools-3.5.2.pom (15 kB at 216 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/31/maven-parent-31.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/31/maven-parent-31.pom (43 kB at 586 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/apache/19/apache-19.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/apache/19/apache-19.pom (15 kB at 231 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-api/2.22.2/surefire-api-2.22.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-api/2.22.2/surefire-api-2.22.2.pom (3.5 kB at 51 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-logger-api/2.22.2/surefire-logger-api-2.22.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-logger-api/2.22.2/surefire-logger-api-2.22.2.pom (2.0 kB at 28 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-booter/2.22.2/surefire-booter-2.22.2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-booter/2.22.2/surefire-booter-2.22.2.pom (7.5 kB at 108 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-container-default/1.0-alpha-9-stable-1/plexus-container-default-1.0-alpha-9-stable-1.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-container-default/1.0-alpha-9-stable-1/plexus-container-default-1.0-alpha-9-stable-1.pom (3.9 kB at 53 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-containers/1.0.3/plexus-containers-1.0.3.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-containers/1.0.3/plexus-containers-1.0.3.pom (492 B at 7.3 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus/1.0.4/plexus-1.0.4.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus/1.0.4/plexus-1.0.4.pom (5.7 kB at 88 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/junit/junit/4.12/junit-4.12.pom
Downloaded from central: https://repo.maven.apache.org/maven2/junit/junit/4.12/junit-4.12.pom (24 kB at 329 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/hamcrest/hamcrest-core/1.3/hamcrest-core-1.3.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/hamcrest/hamcrest-core/1.3/hamcrest-core-1.3.pom (766 B at 12 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/hamcrest/hamcrest-parent/1.3/hamcrest-parent-1.3.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/hamcrest/hamcrest-parent/1.3/hamcrest-parent-1.3.pom (2.0 kB at 29 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/1.0.4/plexus-utils-1.0.4.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/1.0.4/plexus-utils-1.0.4.pom (6.9 kB at 69 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/classworlds/classworlds/1.1-alpha-2/classworlds-1.1-alpha-2.pom
Downloaded from central: https://repo.maven.apache.org/maven2/classworlds/classworlds/1.1-alpha-2/classworlds-1.1-alpha-2.pom (3.1 kB at 45 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/reporting/maven-reporting-api/3.0/maven-reporting-api-3.0.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/reporting/maven-reporting-api/3.0/maven-reporting-api-3.0.pom (2.4 kB at 37 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/shared/maven-shared-components/15/maven-shared-components-15.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/shared/maven-shared-components/15/maven-shared-components-15.pom (9.3 kB at 135 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/16/maven-parent-16.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/16/maven-parent-16.pom (23 kB at 319 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/apache/7/apache-7.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/apache/7/apache-7.pom (14 kB at 206 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/classworlds/classworlds/1.1/classworlds-1.1.pom
Downloaded from central: https://repo.maven.apache.org/maven2/classworlds/classworlds/1.1/classworlds-1.1.pom (3.3 kB at 52 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-toolchain/2.2.1/maven-toolchain-2.2.1.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-toolchain/2.2.1/maven-toolchain-2.2.1.pom (3.3 kB at 52 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/com/thoughtworks/qdox/qdox/2.0-M8/qdox-2.0-M8.pom
Downloaded from central: https://repo.maven.apache.org/maven2/com/thoughtworks/qdox/qdox/2.0-M8/qdox-2.0-M8.pom (16 kB at 220 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/maven-surefire-common/2.22.2/maven-surefire-common-2.22.2.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/maven-surefire-common/2.22.2/maven-surefire-common-2.22.2.jar (528 kB at 2.2 MB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-api/2.2.1/maven-plugin-api-2.2.1.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugin-tools/maven-plugin-annotations/3.5.2/maven-plugin-annotations-3.5.2.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-api/2.22.2/surefire-api-2.22.2.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-logger-api/2.22.2/surefire-logger-api-2.22.2.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-booter/2.22.2/surefire-booter-2.22.2.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-api/2.2.1/maven-plugin-api-2.2.1.jar (12 kB at 172 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-artifact/2.2.1/maven-artifact-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/plugin-tools/maven-plugin-annotations/3.5.2/maven-plugin-annotations-3.5.2.jar (14 kB at 81 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/1.5.15/plexus-utils-1.5.15.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-logger-api/2.22.2/surefire-logger-api-2.22.2.jar (13 kB at 74 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-descriptor/2.2.1/maven-plugin-descriptor-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-artifact/2.2.1/maven-artifact-2.2.1.jar (80 kB at 402 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-container-default/1.0-alpha-9-stable-1/plexus-container-default-1.0-alpha-9-stable-1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-api/2.22.2/surefire-api-2.22.2.jar (186 kB at 575 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/junit/junit/4.12/junit-4.12.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-descriptor/2.2.1/maven-plugin-descriptor-2.2.1.jar (39 kB at 117 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/surefire/surefire-booter/2.22.2/surefire-booter-2.22.2.jar (274 kB at 812 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-project/2.2.1/maven-project-2.2.1.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/hamcrest/hamcrest-core/1.3/hamcrest-core-1.3.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-container-default/1.0-alpha-9-stable-1/plexus-container-default-1.0-alpha-9-stable-1.jar (194 kB at 430 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-settings/2.2.1/maven-settings-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/hamcrest/hamcrest-core/1.3/hamcrest-core-1.3.jar (45 kB at 90 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-profile/2.2.1/maven-profile-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/1.5.15/plexus-utils-1.5.15.jar (228 kB at 384 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-artifact-manager/2.2.1/maven-artifact-manager-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-project/2.2.1/maven-project-2.2.1.jar (156 kB at 261 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/backport-util-concurrent/backport-util-concurrent/3.1/backport-util-concurrent-3.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/junit/junit/4.12/junit-4.12.jar (315 kB at 525 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-registry/2.2.1/maven-plugin-registry-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-settings/2.2.1/maven-settings-2.2.1.jar (49 kB at 82 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-interpolation/1.11/plexus-interpolation-1.11.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-profile/2.2.1/maven-profile-2.2.1.jar (35 kB at 58 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-model/2.2.1/maven-model-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-registry/2.2.1/maven-plugin-registry-2.2.1.jar (30 kB at 40 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-core/2.2.1/maven-core-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-interpolation/1.11/plexus-interpolation-1.11.jar (51 kB at 68 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-parameter-documenter/2.2.1/maven-plugin-parameter-documenter-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-model/2.2.1/maven-model-2.2.1.jar (88 kB at 116 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/slf4j/slf4j-jdk14/1.5.6/slf4j-jdk14-1.5.6.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-artifact-manager/2.2.1/maven-artifact-manager-2.2.1.jar (68 kB at 90 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/slf4j/slf4j-api/1.5.6/slf4j-api-1.5.6.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/slf4j/slf4j-api/1.5.6/slf4j-api-1.5.6.jar (22 kB at 25 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/slf4j/jcl-over-slf4j/1.5.6/jcl-over-slf4j-1.5.6.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-plugin-parameter-documenter/2.2.1/maven-plugin-parameter-documenter-2.2.1.jar (22 kB at 25 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/reporting/maven-reporting-api/3.0/maven-reporting-api-3.0.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/slf4j/slf4j-jdk14/1.5.6/slf4j-jdk14-1.5.6.jar (8.8 kB at 9.8 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-repository-metadata/2.2.1/maven-repository-metadata-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-core/2.2.1/maven-core-2.2.1.jar (178 kB at 195 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-error-diagnostics/2.2.1/maven-error-diagnostics-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/backport-util-concurrent/backport-util-concurrent/3.1/backport-util-concurrent-3.1.jar (332 kB at 353 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-monitor/2.2.1/maven-monitor-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/reporting/maven-reporting-api/3.0/maven-reporting-api-3.0.jar (11 kB at 11 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/classworlds/classworlds/1.1/classworlds-1.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/slf4j/jcl-over-slf4j/1.5.6/jcl-over-slf4j-1.5.6.jar (17 kB at 17 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-toolchain/2.2.1/maven-toolchain-2.2.1.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-error-diagnostics/2.2.1/maven-error-diagnostics-2.2.1.jar (13 kB at 13 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/com/thoughtworks/qdox/qdox/2.0-M8/qdox-2.0-M8.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-repository-metadata/2.2.1/maven-repository-metadata-2.2.1.jar (26 kB at 26 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-monitor/2.2.1/maven-monitor-2.2.1.jar (10 kB at 10 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/classworlds/classworlds/1.1/classworlds-1.1.jar (38 kB at 36 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-toolchain/2.2.1/maven-toolchain-2.2.1.jar (38 kB at 36 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/com/thoughtworks/qdox/qdox/2.0-M8/qdox-2.0-M8.jar (316 kB at 261 kB/s)
[INFO] Tests are skipped.
[INFO]
[INFO] --- failsafe:2.22.2:verify (default) @ graphhopper-parent ---
[INFO] Tests are skipped.
[INFO]
[INFO] --- install:3.1.2:install (default-install) @ graphhopper-parent ---
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-util/1.9.18/maven-resolver-util-1.9.18.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-util/1.9.18/maven-resolver-util-1.9.18.pom (2.9 kB at 38 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver/1.9.18/maven-resolver-1.9.18.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver/1.9.18/maven-resolver-1.9.18.pom (22 kB at 302 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/41/maven-parent-41.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/maven-parent/41/maven-parent-41.pom (50 kB at 601 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/apache/31/apache-31.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/apache/31/apache-31.pom (24 kB at 331 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-api/1.9.18/maven-resolver-api-1.9.18.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-api/1.9.18/maven-resolver-api-1.9.18.pom (2.7 kB at 43 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/4.0.1/plexus-utils-4.0.1.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/4.0.1/plexus-utils-4.0.1.pom (7.8 kB at 113 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus/17/plexus-17.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus/17/plexus-17.pom (28 kB at 408 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-xml/3.0.0/plexus-xml-3.0.0.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-xml/3.0.0/plexus-xml-3.0.0.pom (3.7 kB at 56 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus/13/plexus-13.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus/13/plexus-13.pom (27 kB at 370 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/junit/junit-bom/5.9.3/junit-bom-5.9.3.pom
Downloaded from central: https://repo.maven.apache.org/maven2/org/junit/junit-bom/5.9.3/junit-bom-5.9.3.pom (5.6 kB at 91 kB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-util/1.9.18/maven-resolver-util-1.9.18.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-util/1.9.18/maven-resolver-util-1.9.18.jar (196 kB at 1.5 MB/s)
Downloading from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-api/1.9.18/maven-resolver-api-1.9.18.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/4.0.1/plexus-utils-4.0.1.jar
Downloading from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-xml/3.0.0/plexus-xml-3.0.0.jar
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-xml/3.0.0/plexus-xml-3.0.0.jar (93 kB at 574 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/org/apache/maven/resolver/maven-resolver-api/1.9.18/maven-resolver-api-1.9.18.jar (157 kB at 893 kB/s)
Downloaded from central: https://repo.maven.apache.org/maven2/org/codehaus/plexus/plexus-utils/4.0.1/plexus-utils-4.0.1.jar (193 kB at 972 kB/s)
[INFO] Installing /home/lhostis/Documents/Logiciels/graphhopper/pom.xml to /home/lhostis/.m2/repository/com/graphhopper/graphhopper-parent/11.0-SNAPSHOT/graphhopper-parent-11.0-SNAPSHOT.pom
[INFO]
[INFO] ----------------< com.graphhopper:graphhopper-web-api >-----------------
[INFO] Building GraphHopper Web API 11.0-SNAPSHOT                        [2/11]
[INFO]   from web-api/pom.xml
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- clean:3.2.0:clean (default-clean) @ graphhopper-web-api ---
[INFO]
[INFO] --- resources:3.3.1:resources (default-resources) @ graphhopper-web-api ---
[INFO] skip non existing resourceDirectory /home/lhostis/Documents/Logiciels/graphhopper/web-api/src/main/resources
[INFO]
[INFO] --- compiler:3.8.1:compile (default-compile) @ graphhopper-web-api ---
[INFO] Changes detected - recompiling the module!
[INFO] Compiling 51 source files to /home/lhostis/Documents/Logiciels/graphhopper/web-api/target/classes
[WARNING] Unable to autodetect 'javac' path, using 'javac' from the environment.
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for GraphHopper Parent Project 11.0-SNAPSHOT:
[INFO]
[INFO] GraphHopper Parent Project ......................... SUCCESS [  6.000 s]
[INFO] GraphHopper Web API ................................ FAILURE [  0.482 s]
[INFO] GraphHopper Core ................................... SKIPPED
[INFO] GraphHopper Reader for Gtfs Data ................... SKIPPED
[INFO] GraphHopper Tools .................................. SKIPPED
[INFO] GraphHopper Map Matching ........................... SKIPPED
[INFO] GraphHopper Directions API hand-crafted Java Client. SKIPPED
[INFO] GraphHopper Dropwizard Bundle ...................... SKIPPED
[INFO] GraphHopper Navigation ............................. SKIPPED
[INFO] GraphHopper Web .................................... SKIPPED
[INFO] GraphHopper Example ................................ SKIPPED
[INFO] ------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  6.710 s
[INFO] Finished at: 2025-05-15T22:35:32+02:00
[INFO] ------------------------------------------------------------------------
[ERROR] Failed to execute goal org.apache.maven.plugins:maven-compiler-plugin:3.8.1:compile (default-compile) on project graphhopper-web-api: Compilation failure -> [Help 1]
[ERROR]
[ERROR] To see the full stack trace of the errors, re-run Maven with the -e switch.
[ERROR] Re-run Maven using the -X switch to enable full debug logging.
[ERROR]
[ERROR] For more information about the errors and possible solutions, please read the following articles:
[ERROR] [Help 1] http://cwiki.apache.org/confluence/display/MAVEN/MojoFailureException
[ERROR]
[ERROR] After correcting the problems, you can resume the build with the command
[ERROR]   mvn <args> -rf :graphhopper-web-api

karussell · May 16, 2025, 6:27am

You need a JDK that mvn can find. I think you only have a JRE and this not sufficient as it comes without the compiler javac.

Here you can download one: https://adoptium.net/

alainlhostis · May 16, 2025, 2:02pm

Indeed, I installed Java JDK which was missing.
Was able to

successfully compile a graphhopper-web-11.0-SNAPSHOT.jar
copy it in my folder
had to reverse and re introduce the parameter foot_road_access in the encoded_values of the config file
run java -Xmx8g -jar graphhopper-web-11.0-SNAPSHOT.jar server config-pt.yml
localhost:8989 shows me the OSM map, without overlay of transit stops though, lets me route walking trips in Nord-Pas-de-Calais, fine

but then

same issue with http://localhost:8989/maps/?profile=pt&layer=OpenStreetMap with a red message The requested profile 'pt' does not exist. Available profiles: [foot]
same issue of a totally empty web page with localhost:8989/maps/pt
adapted your suggested url into http://localhost:8989/route?point=50.638012%2C3.067779&point=50.326466%2C2.981175&pt.earliest_departure_time=2025-05-15T17%3A10%3A33Z&pt.arrive_by=false&locale=en-US&profile=pt&pt.profile=false&pt.access_profile=foot&pt.beta_access_time=1&pt.egress_profile=foot&pt.beta_egress_time=1&pt.profile_duration=PT120M&pt.limit_street_time=PT30M&pt.ignore_transfers=false to match my region, and obtained a seemingly JSON result of a PT trip, this is encouraging

My question now is, yes this seems to work in the background, but how to I see the transit UI?

karussell · May 16, 2025, 2:09pm

Great!

This is the UI which has no support for pt. If you need the UI you have to use maps/pt/. Hopefully at some point in the future we’ll merge both UIs to make it less confusing.

same issue of a totally empty web page with localhost:8989/maps/pt

Strange, this shouldn’t be. What errors do you see in the browser console?

Also can you check what the latest commit is?

alainlhostis · May 16, 2025, 2:20pm

In the console i read Échec du chargement pour le module dont la source est « http://localhost:8989/maps/view/App.js ».
By latest commit do you mean the changelog?

11.0 [not yet released]

country-dependent toll rules are now always enabled. in the absence of explicit tags or special toll rules we use Toll.NO instead of Toll.MISSING #3111

max_weight_except: changed NONE to MISSING

the list of restrictions for BIKE returned from OSMRoadAccessParser.toOSMRestrictions is again [bicycle, vehicle, access] and not [bicycle, access] like before #2981

road_access now contains value of highest transportation mode for CAR, i.e. access=private, motorcar=yes will now return YES and not PRIVATE

car.json by default avoids private roads

maxspeed<5 is ignored, maxspeed=none is ignored with some exceptions, maxspeed parsing and related constants were renamed #3077

karussell · May 16, 2025, 2:21pm

Are you using a modern browser? (e.g. latest chrome or firefox)

karussell · May 16, 2025, 2:22pm

I mean the git hash like when you do git log the first entry.

alainlhostis · May 16, 2025, 2:25pm

Firefox 138.0.3 with Ubuntu

alainlhostis · May 16, 2025, 2:26pm

wwwwwwwww ~/Documents/Logiciels/graphhopper$ git log
commit 0a05b0456b4f856ee3d1ae7aa1b0c7d499ea6b21 (HEAD → master)
Author: easbar easbar.mail@posteo.net
Date: Wed May 14 19:53:39 2025 +0200
Extract method to create subnetwork encoded values
commit 119b093b22e8c9f7176cdc34a6a02987814a310f
Author: Peter graphhopper@gmx.de
Date: Fri May 9 10:57:07 2025 +0200
build: removed jdk 25-ea until issue is fixed https://github.com/actions/setup-java/issues/804
commit f5e4aef320d616dae22a9fdb75e8e3dcd69c47e1
Author: Peter graphhopper@gmx.de
Date: Fri May 9 10:18:13 2025 +0200
fix #3087
commit d6c2dd8dbd65424187f44f0453c06a48ca5f6eaa
Author: ratrun ratrun@gmx.at
Date: Tue May 6 19:04:04 2025 +0200

alainlhostis · May 16, 2025, 2:29pm

Opera proved alittle more explicit:

pt:61
 GET http://localhost:8989/maps/view/map/Map.css net::ERR_ABORTED 404 (Not Found)
pt:60
 GET http://localhost:8989/maps/view/App.css net::ERR_ABORTED 404 (Not Found)
pt:62
 GET http://localhost:8989/maps/view/components/Inputs.css net::ERR_ABORTED 404 (Not Found)
pt:63
 GET http://localhost:8989/maps/view/components/SecondaryText.css net::ERR_ABORTED 404 (Not Found)
pt:64
 GET http://localhost:8989/maps/view/sidebar/Sidebar.css net::ERR_ABORTED 404 (Not Found)
pt:65
 GET http://localhost:8989/maps/view/sidebar/TripDisplay.css net::ERR_ABORTED 404 (Not Found)
pt:66
 GET http://localhost:8989/maps/view/sidebar/TripElement.css net::ERR_ABORTED 404 (Not Found)
pt:68
 GET http://localhost:8989/maps/view/sidebar/Leg.css net::ERR_ABORTED 404 (Not Found)
pt:67
 GET http://localhost:8989/maps/view/sidebar/SearchInput.css net::ERR_ABORTED 404 (Not Found)
react-dom.development.js:28050 Download the React DevTools for a better development experience: https://fb.me/react-devtools
pt:73
 GET http://localhost:8989/maps/view/App.js net::ERR_ABORTED 404 (Not Found)

alainlhostis · May 19, 2025, 5:54pm

I found my error: missing trailing slash “/” ! As is written in the readme from the beginning.

So the solution is simply to replace localhost:8989/maps/pt into localhost:8989/maps/pt/
